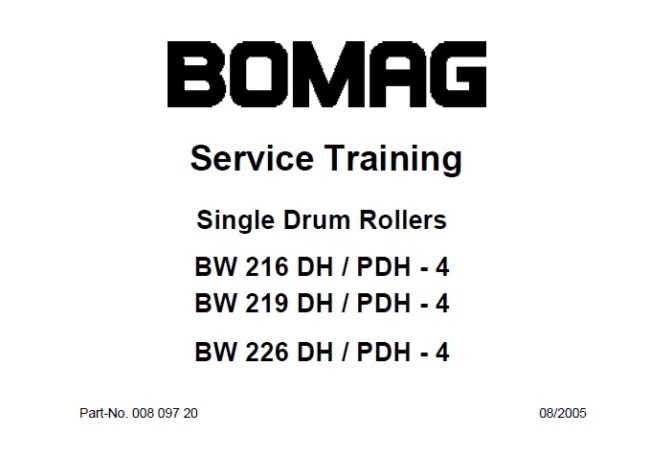

BOMAG BW 216, 219, 226 DH, PDH -4 SINGLE DRUM ROLLERS SERVICE TRAINING MANUAL PDF DOWNLOAD

Total Pages: 255
Configuration: PDF
Language Type: English
Accessible: Every Time
You Can Download After Purchase.
Remarkable Assistance: 24×7
Provides High Quality Illustration Diagrams With Clear And Concise Explanations.
Cooperative With All Versions Of Windows, Mac, IOS, Android.

Learn how to maintain and service your Bomag BW 216, 219, 226 DH / PDH -4 Single Drum Roller with this comprehensive training manual. Increase the lifespan of your equipment and ensure optimal performance with our expert tips and training. Download now in PDF format for easy access.

Models Covered:
BOMAG BW 216, 219, 226 DH, PDH -4 SINGLE DRUM ROLLERS

Manuals Content:
Foreword A 1
Documentation A 2
General A 3
New features A 5
Technical data and adjustment values B 1
Maintenance C 1
Maintenance chart and table of fuels and lubricants C2
DEUTZ diesel engine 2012C with EMR D 1
Service side D 2
Starter side D 3
Lubrication oil circuit D 4
Coolant circuit D 5
Fuel system D 6
EMR D10
Trouble shooting D22
Diagnostics SERDIA D24
Checking and adjusting the valve clearance D26
Assembly of plug-type injection pump D28
Engine components D44
Travel system E 1
Travel pump E 3
Control E 7
Charge pressure relief valve E 8
High pressure relief valve E 9
Pressure override valve E11
Axle drive motor E14
Drum drive motor E17
Test and adjustment points, travel system E19
Trouble shooting travel system E27
Vibration F 1
Vibration pump F 3
High pressure relief valves F 6
Control F 7
Vibration motor F 8
Drum F11
Test and adjustment points, vibration system F13
Trouble shooting vibration F15
Steering G 1
Charge pump G 2
Steering pump G 3
Steering valve G 5
Articulated joint G 7
Measuring and adjustment points G 9
Trouble shooting steering G10
Electrics H 1
Wiring diagram
Hydraulic diagram
